MAGNESIUM

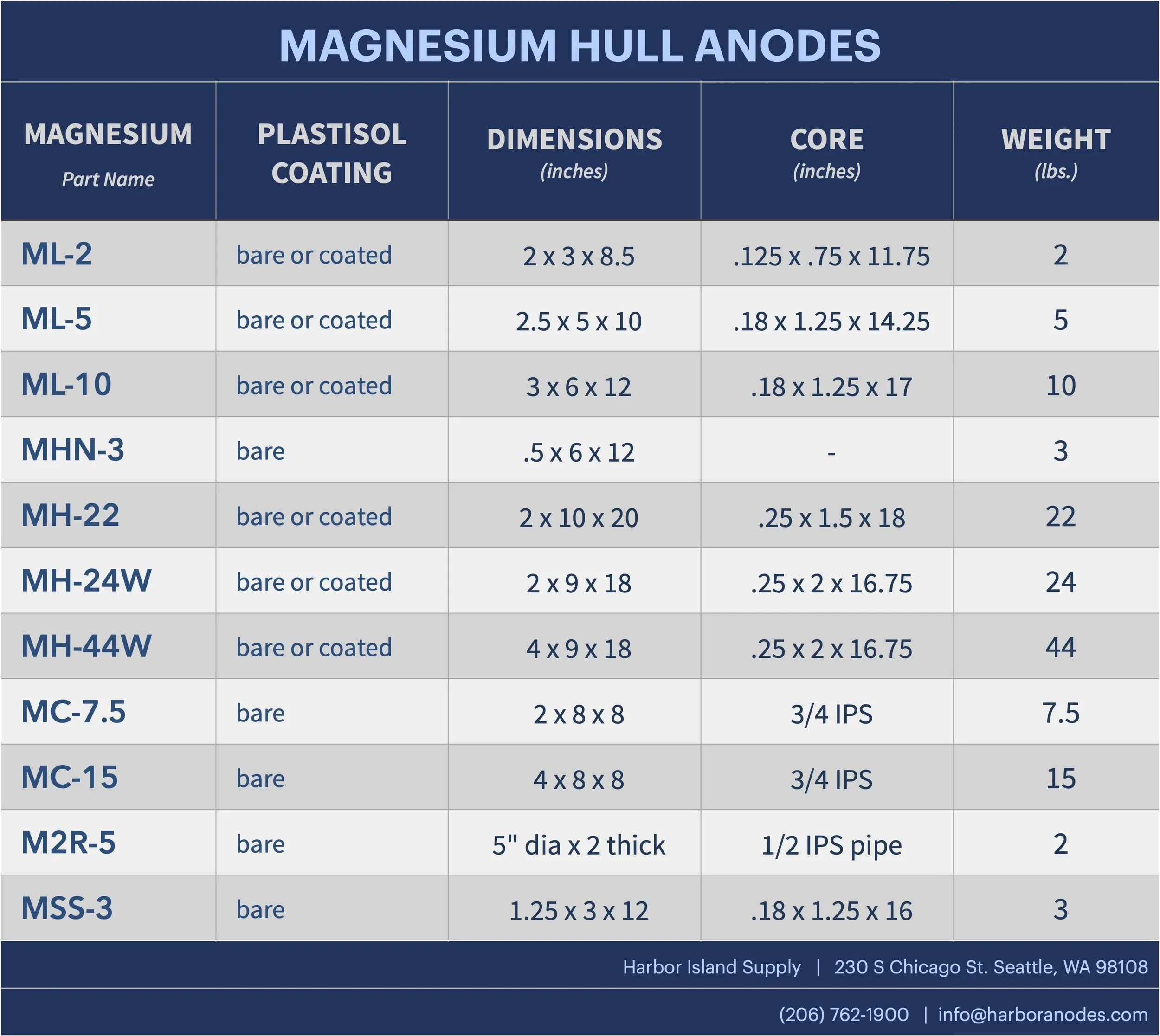

Magnesium Hull Anodes

Magnesium anodes have a more negative potential than aluminum or zinc Anodes and are more suitable for areas where the electrolyte (soil or water) resistivity is higher. They are generally used on vessels in fresh water environments and in water heaters/boilers.

In some cases, the higher negative potential of magnesium can be a disadvantage. If the potential of the protected metal becomes too negative, hydrogen may be released from the cathode surface which may lead to accelerated corrosion.

Magnesium Anodes are available either bare or plastisol-coated. Alloy is typically H-1, Grade A (AZ-63).

Photos
Specs
Magnesium Rods
Magnesium Backfill Anodes

Magnesium Hull Anodes

  • ML-2

  • ML-5

  • ML-10

  • MHN-3

  • MH-22

  • MH-24W

  • MH-44W

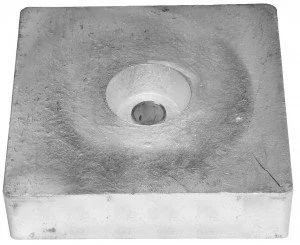

  • MC-7.5

  • MC-15

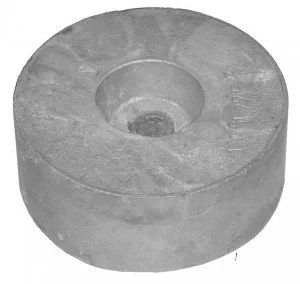

  • M-2R5

  • MSS-3

Specifications

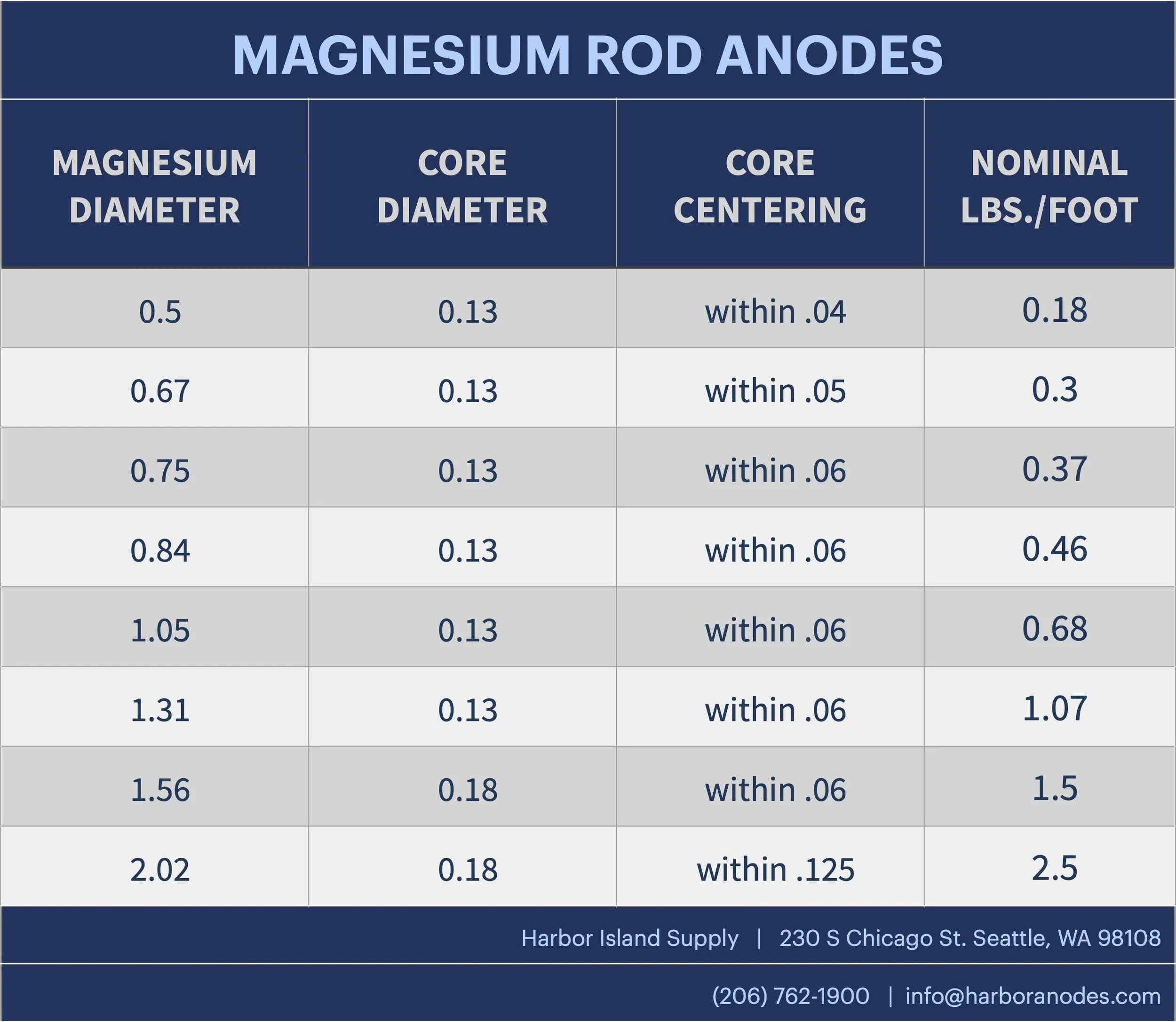

Magnesium Rod Anodes

Extruded Magnesium Rod Anode applications include boilers, hot water heaters, pools, dams, and other freshwater systems.

Magnesium rod has an internal steel core. Segmented anodes are available for “tight fit” installations.

  • Magnesium Rod

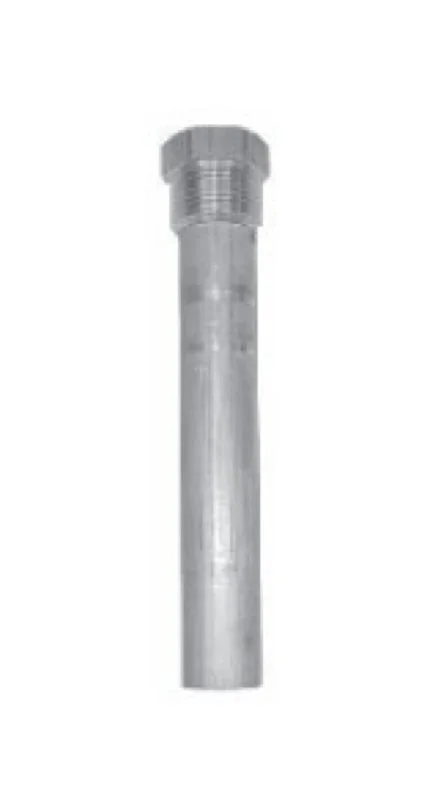

  • Magnesium Pencil Anode

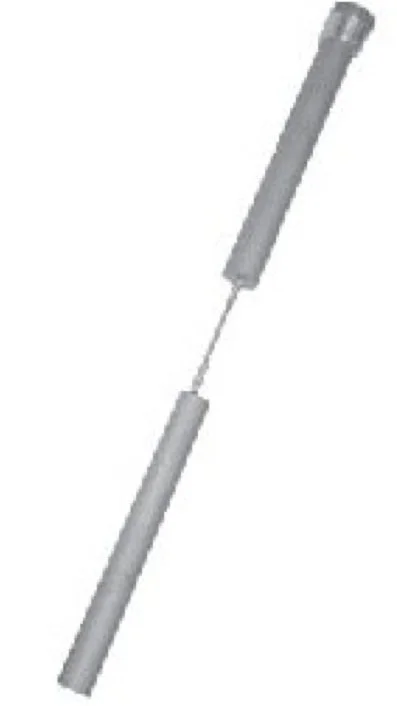

  • Segmented Pencil Anode

Available in:

Saw Cut Ends  –  Machine Threaded Ends  –  Segmented  –  Exposed Cores

Specifications

Magnesium Backfill Anodes

Magnesium Backfill Anodes typically have 10′ of No. 12 insulated wire and are packaged in the backfill mixture of:

75% Hydrated Gypsum, 20% Bentonite, 5% Sodium Sulfate

Specifications

Not sure which product you need? Give us a call or email us and our knowledgeable staff can assist you.
